Furuno DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000 [DST-810MSF]

DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000

Airmar B617V Housing Style Transducer

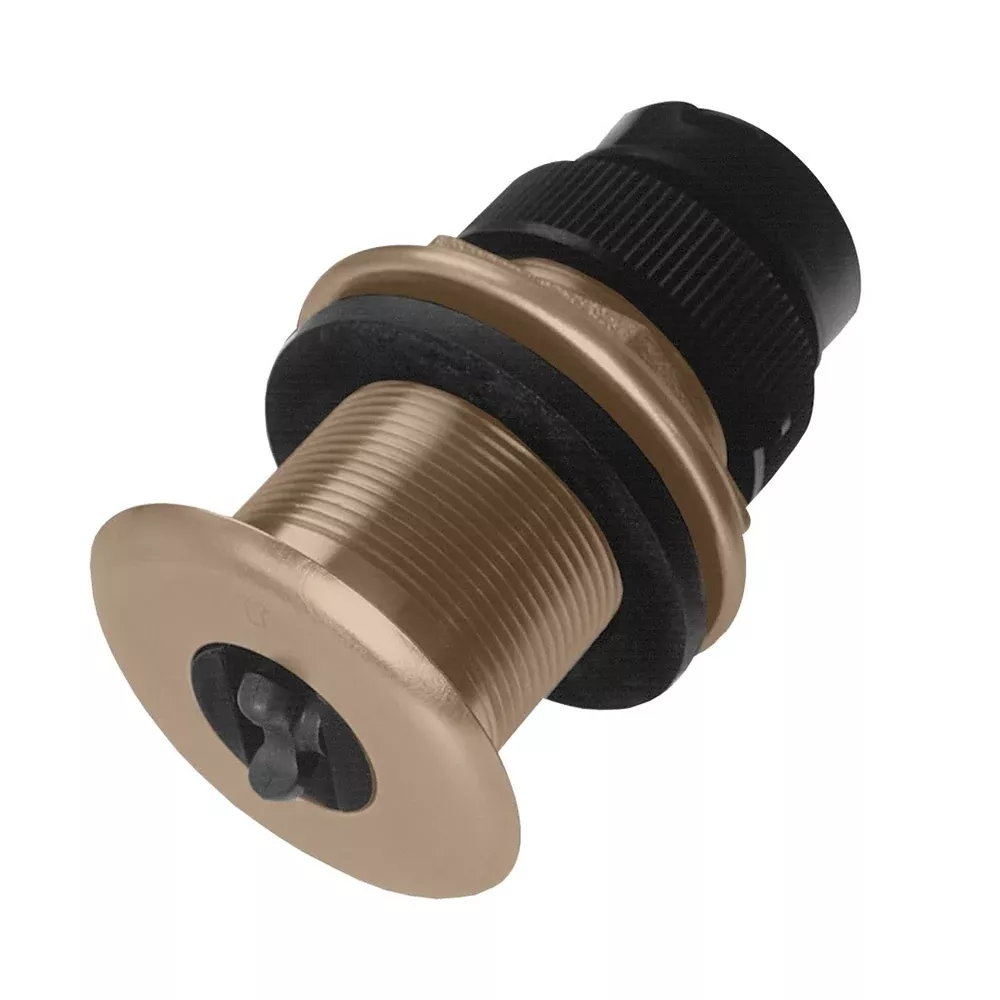

The DST-801MSF offers depth, speed, and temperature in a single, 51 mm (2”) fitting. Only one hole through the hull simplifies the installation — an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing and upgraded 5 Hz (5X per second) speed-through-water enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-810MSF’s reliable temperature sensor.

The DST-810MSF features a new Wireless connectivity to Airmar’s CAST App, allowing you to calibrate the sensor, add depth offsets, and more.

Features:

• Depth, speed, and temperature in one compact bronze housing
• Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
• Weight: 1.6 kg (3.5 lb)
• Acoustic Window: Urethane Hull
• Deadrise: Up to 22°
• Data Update Rate: 1 per second
• Minimum Sounding Depth: 0.5 m (1.6’)
• Maximum Sounding Depth: 70 m (230’)
• Pressure Rating: 3 m (10’)
• Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
• Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC
• Supply Current: 40 mA
• Standard Cable Length: 6m
• NMEA 2000® Load Equivalency Number (LEN): 4

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
