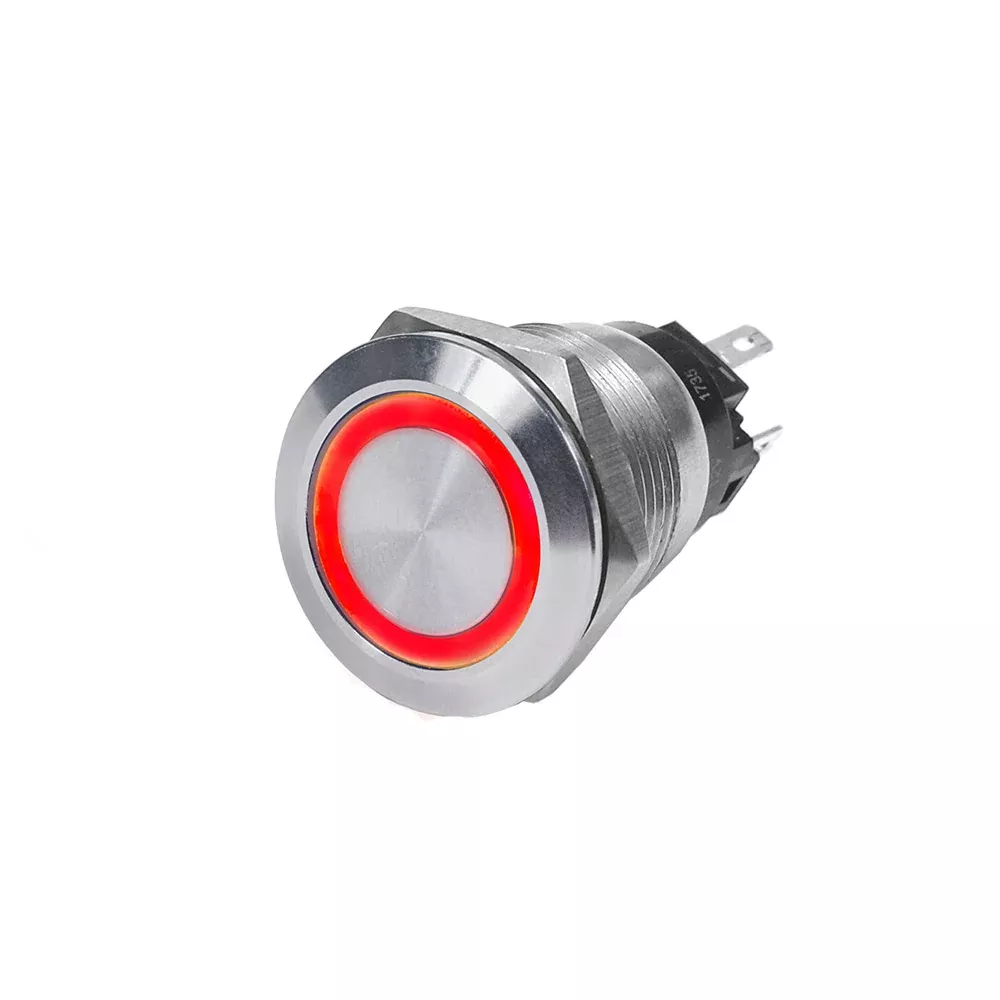

Blue Sea 4163 SS Push Button Switch – Off-(On) – Red – 10A [4163]

Original price was: $29.59.Current price is: $21.17.

Sale!
SKU: BLU-4163 Category:
Share

4163 SS Push Button Switch – Off-(On) – Red – 10A

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)

Specifications

  • Action: OFF-(ON)
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -55° C
  • Maximum Storage Temperature: 85° C
  • Illumination: Independent – Separate contacts for LED power
  • Mounting Hole: 19mm
  • Switching Cycles: 18,000
  • Termination: 5 – 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Color: Stainless
  • Action: (ON)-OFF
  • Box Dimensions: 2″H x 3″W x 5″L WT: 0.1 lbs
  • UPC: 632085041632
